INSTALLATION SHEETDESCRIPTION

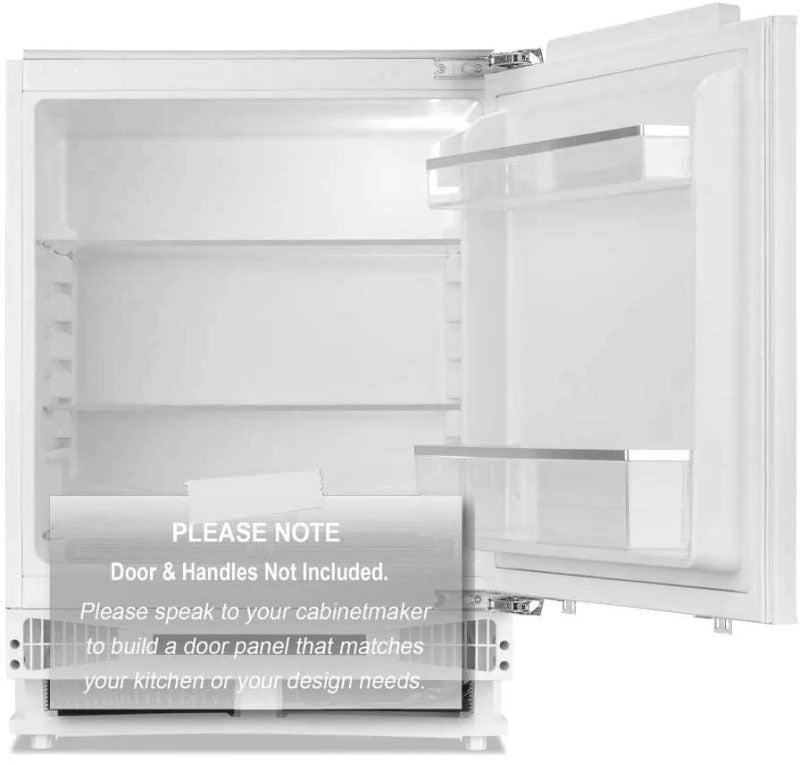

Upgrade your kitchen or entertainment space with the CASAFI135W built-in bar fridge — a sleek, space-saving solution tailored for modern living. With a 135L capacity and static cooling system, it ensures consistent temperature control to keep your beverages and snacks perfectly chilled. Designed for flexibility, it features reversible doors, two durable tempered glass shelves, LED side lighting, and a super freezing function for rapid cooling when needed.
Quiet and energy-efficient, the unit operates at just 40dB and runs on a standard 220–240V/50–60Hz (0.8A) power supply. Its compact dimensions (820–870mm H × 596mm W × 550mm D) and lightweight 27kg build make it ideal for under-counter installation in apartments, offices, or home bars.

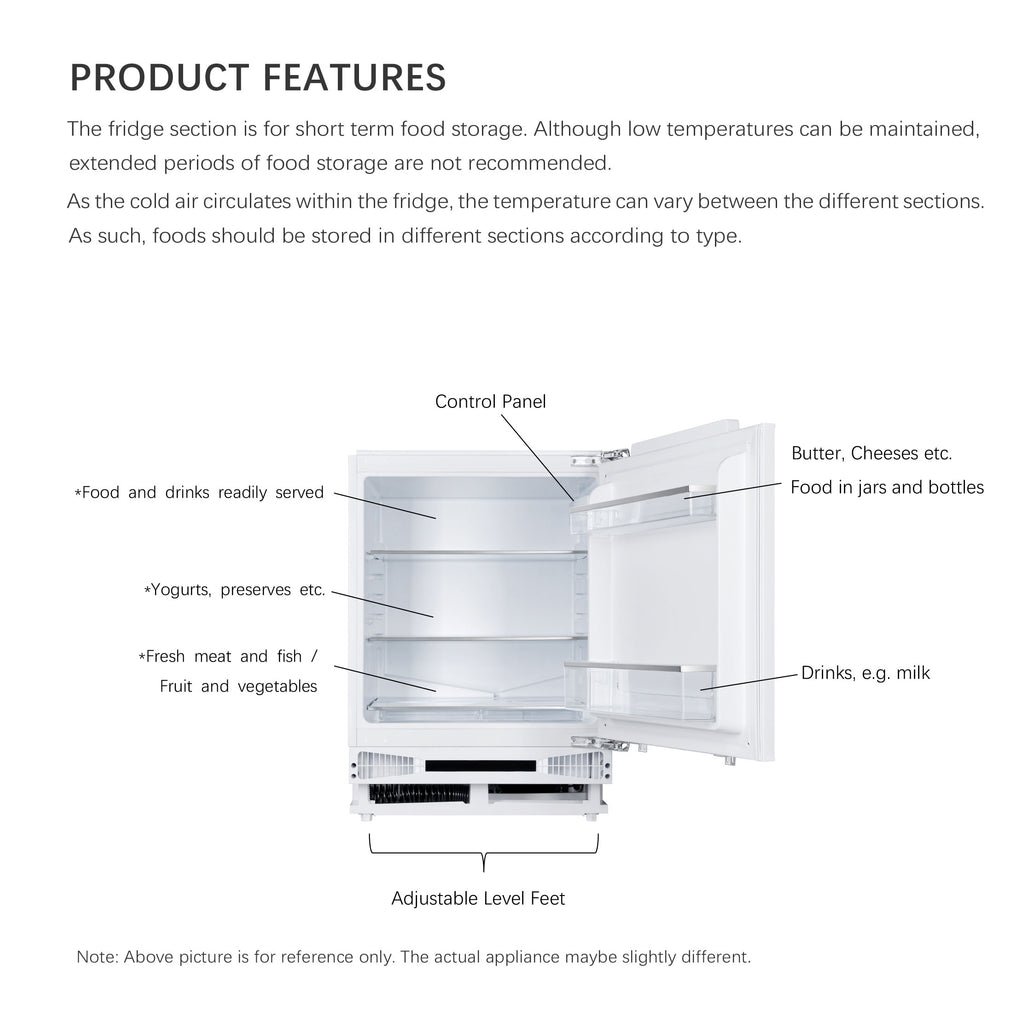

FEATURES
- 135L Built-in Bar Fridge
- White, Static Cooling, T-class
- R600a Refrigerant
- 1 Door, 2 Adjustable shelves + 2 Crispers.
- Super Freezing
- Reversible Doors
- Door Alarm
SPECIFICATIONS
-
General Info
- Type: Integrated
- Installation: Integrated
- Energy Efficiency: 2.5 Star
- Volume: 135L
- Feature Hinge: Reversible-Door
- Energy Use: 302kWh/annum
- Cooling system: Static
- Silver decors on: glass shelves, balconies
- Internal sticker: safety glass
- Type of product: built in (FIX)--door on door
- Power supply voltage: 220-240V~
- Frequency [Hz]: 50/60Hz
- Rated Current: 0.8A
- Refrigerant: R600a (25g)
- Power cord length (measured from compressor) [cm]: 180
- Type of electric plug: AU plug
- Design type: built-in
- Sum of volumes of chill and unfrozen compartments [l]: 135
- Anti-condensation heater type: ambient
- Climate class: T
- Airborne acoustical noise emissions [dB(A) re 1 pW]: 40
- Airborne acoustical noise emission class: C
- Number of doors or compartments (whichever is lower): 1
- Type of light source: LED
- Quantity of adjustable shelves: 2
- Material of shelves (fridge): safety glass
- Shelf frames: front and rear frame
- Interior lamp type: LED
- Interior lamp position: Side
- Vegetable crisper - quantity: 2
- Quantity of big door balconies: 1
- Quantity of medium door balconies: 1
- Egg tray: Yes
- Temperature control: Simple Electronic
- Temperature selection range: 1 to 5
- Location of control panel: Inside On The Right
- Super freezing function: Yes
- Reversible doors: Yes
- Adjustable feet (front / rear): yes / no
- Replaceable door gaskets: Yes
- Condenser location: Internal
- Non-flammable back wall: Metal
- Non-flammable compressor compartment upper surface: Metal
- Non-flammable compressor compartment back surface: Metal
PRODUCT DIMENSIONS
- Product Size H x W x D (mm): 820 x 596 x 550
WARRANTY
- 2 Years
