USER MANUAL
INSTALLATION SHEETDESCRIPTION
The CASAFI244 is a fully integrated refrigerator-freezer designed for modern households seeking efficiency and versatility. With a total capacity of 244 liters (177L fridge + 67L freezer), it features a Total NoFrost system to eliminate manual defrosting in both compartments. Its 3-star energy rating ensures cost-effective operation, while advanced functions like Super Cooling, Super Freezing, ECO Mode, and Holiday Mode enhance usability. The front-panel electronic display and VitControl humidity drawers maintain optimal freshness for fruits and vegetables. Quiet at 41 dB(A), this model combines smart technology with sleek design, perfect for kitchens prioritizing space and convenience.
FEATURES
- Total NoFrost Cooling
- Energy Efficiency: 3-star rating.
- Dual Storage: 177L fridge + 67L freezer (244L total).
- Advanced Functions: Super cooling, Super freezing, ECO, Holiday mode.
- Electronic Display: Front-panel digital control.
- Humidity Control: VitControl drawer for crispers.
- Low Noise: 41 dB(A) operation.
SPECIFICATIONS
-
General Info
- Type: Integrated
- Installation: Integrated
- Energy Efficiency: 3 Star
- Volume: 244L
- Feature Hinge: Reversible-Door
- Energy Use: 300kWh/annum
- Freezer Volume: 67L
- Fridge Volume: 177L
- Cooling system: Total Nofrost
- Silver decors on: crisper(s), glass shelves, Balconies
- Humidity control drawer: VitControl
- Power supply voltage: 220-240V
- Frequency [Hz]: 50
- Refrigerant: R600a
- No-frost system in fridge: Yes
- No-frost system in freezer: Yes
- Power cord length (measured from compressor) [cm]: 220
- Display location: Display at front
- Design type: FULLY INTEGRATED
- Anti-condensation heater type: ambient
- Airborne acoustical noise emissions [dB(A) re 1 pW]: 41
- Airborne acoustical noise emission class: C
- Number of doors or compartments (whichever is lower): 2
- Fast freeze facility (for 4-star compartments): Yes
- Max storage time in freezer by power failure [h]: 10
- Type of light source: LED
- Quantity of adjustable shelves: 3
- Material of shelves (fridge): safety glass
- Shelf frames: front and rear frame
- Interior lamp type: LED
- Interior lamp position: Ceiling
- Vegetable crisper - quantity: 2
- Quantity of big door balconies: 1
- Quantity of medium door balconies: 2
- Egg tray: Yes
- Quantity of shelves (freezer): 2
- Material of shelves (freezer): safety glass
- Quantity of drawers: 3
- Material of drawers: Plastic
- Quantity of flaps: -
- Ice cube tray: Yes
- Location of no-frost evaporator: back wall
- Temperature control: Full electronic
- Location of control panel: Top facial
- Electronic display: Yes
- Super cooling function: Yes
- Super freezing function: Yes
- ECO function: Yes
- Holiday function: Yes
- High temperature alarm in freezer: Yes
- Opened door alarm: Yes
- Reversible doors: Yes
- Replaceable door gaskets: Yes
- Condenser location: External
- Non-flammable back wall: Metal
- Non-flammable compressor compartment upper surface: Metal
- Non-flammable compressor compartment back surface: Metal

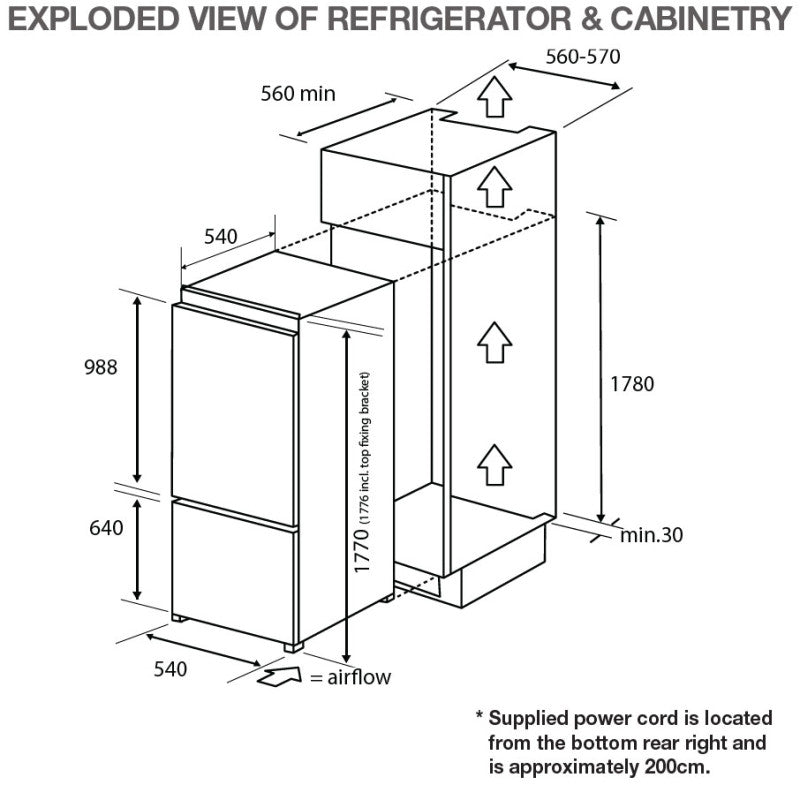

PRODUCT DIMENSIONS
- Product Size H x W x D (mm): 1769 x 540 x 550
WARRANTY
- 2 Years
