USER MANUAL
INSTALLATION SHEETDESCRIPTION
Experience the perfect blend of capacity and convenience with the CASAFI439W refrigerator. With a generous 439L total volume, it caters effortlessly to family needs. The 278L refrigerator section features adjustable glass shelves, two crispers, and an advanced no-frost system for hassle-free cooling. Meanwhile, the 161L 4-star freezer offers three sturdy metal drawers and optional ice-making functionality.
Designed with modern living in mind, it includes full electronic controls, a sleek LED display, ECO mode, and a holiday function to optimize energy use. No-frost technology in both compartments means no more manual defrosting. Versatile installation is made easy with reversible doors, adjustable feet, and rear castors. This refrigerator is the ideal choice for households seeking reliable, frost-free performance with a spacious layout.
FEATURES
- 439L built-in fridge-freezer
- 278L fridge + 161L capacity
- No-frost, Energy Rating (MEPS) 3 Star
- T-class, 3 doors
- LED display, ECO/holiday modes
- Adjustable feet/castors
SPECIFICATIONS
-
General Info
- Type: Integrated
- Installation: Integrated
- Energy Efficiency: 3 Star
- Volume: 439L
- Feature Hinge: Reversible-Door
- Energy Use: 447kWh/annum
- Freezer Volume: 161L
- Fridge Volume: 278L
- Color of internal equipment: clear transparent + Metal
- Type of product: built in (FIX)
- Power supply voltage: 230V
- Frequency (Hz): 50
- Refrigerant: R600a
- Type of compressor: Standard
- Current of compressor (A): 0.3
- Current of product (A): 0.4
- Heater power in no frost models (W): 180
- No-frost system in fridge: Yes
- No-frost system in freezer: Yes
- Power cord length (measured from compressor): 2.5m
- Type of electric plug: AU plug
- Design type: built-in
- Other refrigerating appliance: Yes
- Temperature rise time: 11.5
- Climate class: T
- Number of doors or compartments (whichever is lower): 3
- Fast freeze facility (for 4-star compartments): Yes
- Quantity of adjustable shelves: 2
- Material of shelves (fridge): safety glass
- Shelf frames: front and rear frame
- Interior lamp type: LED
- Interior lamp position: Top + side
- Vegetable crisper - quantity: 2 + 1
- Fresh room: Yes
- Quantity of big door balconies: 1
- Quantity of medium door balconies: 5
- Egg tray: Yes
- Waterspout plug: No
- Remarks for refrigerator: 1. Quantity of adjustable shelves: 2
- Star rating: 4
- Quantity of drawers: 3
- Material of drawers: Metal
- Ice maker: Optional
- Location of no-frost evaporator: back wall
- Interior lamp position (freezer): Top
- Temperature control: Full electronic
- Location of control panel: inside - Right side
- Electronic display: Yes
- Super cooling function: Yes
- Super freezing function: Yes
- ECO function: Yes
- Holiday function: Yes
- High temperature alarm in freezer: Yes
- Opened door alarm: Yes
- Reversible doors: Yes
- Adjustable feet (front / rear): yes / yes
- Castors (front / rear): no / yes
- Replaceable door gaskets: yes / yes
- Condenser location: External
- Non-flammable back wall: Metal
- Non-flammable compressor compartment upper surface: Metal
- Non-flammable compressor compartment back surface: Metal

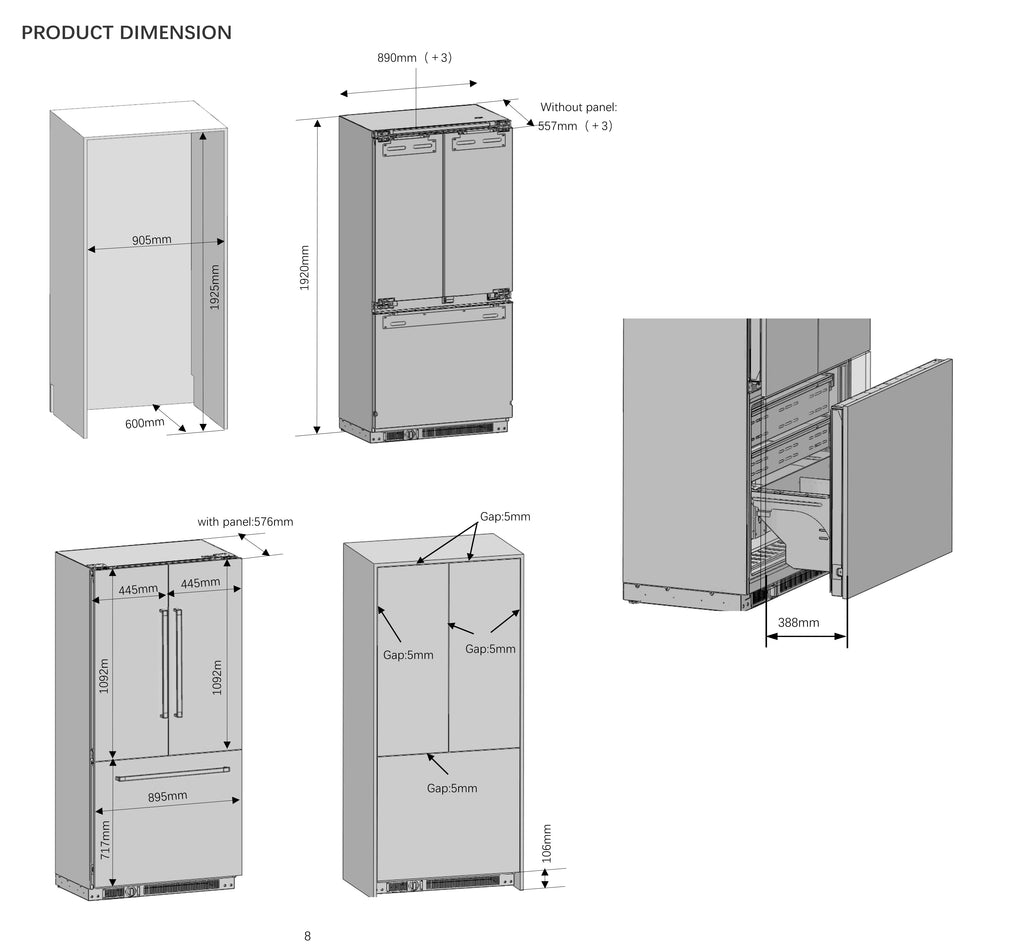

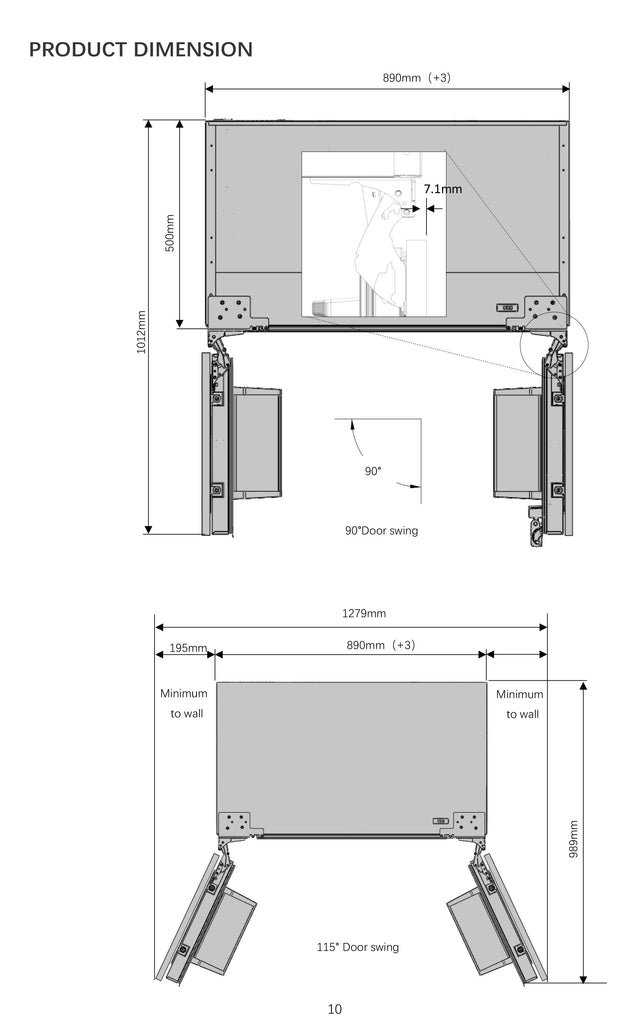

PRODUCT DIMENSIONS
- Product Size H x W x D (mm): 1920 x 893 x 560
WARRANTY
- 2 Years
